Reference types in Solidity
Reference Type: Reference types differ from value types in that they do not store values directly on their own. Instead, reference types store the address/pointer of the data’s location and do not directly share the data. You can modify the underlying data with different variable names. Reference types array
, struct
and mapping
, which take up a lot of storage space. We need to deal with the location of the data storage when using them.
Data location
There are three types of data storage locations in solidity: storage
, memory
and calldata
. Gas costs are different for different storage locations.
The data of a storage
variable is stored on-chain, similar to the hard disk of a computer, and consumes a lot of gas
; while the data of memory
and calldata
variables are temporarily stored in memory, consuming less gas
.
General usage:
-
storage
: The state variables arestorage
by default, which are stored on-chain. -
memory
: The parameters and temporary variables in the function generally usememory
label, which is stored in memory and not on-chain. -

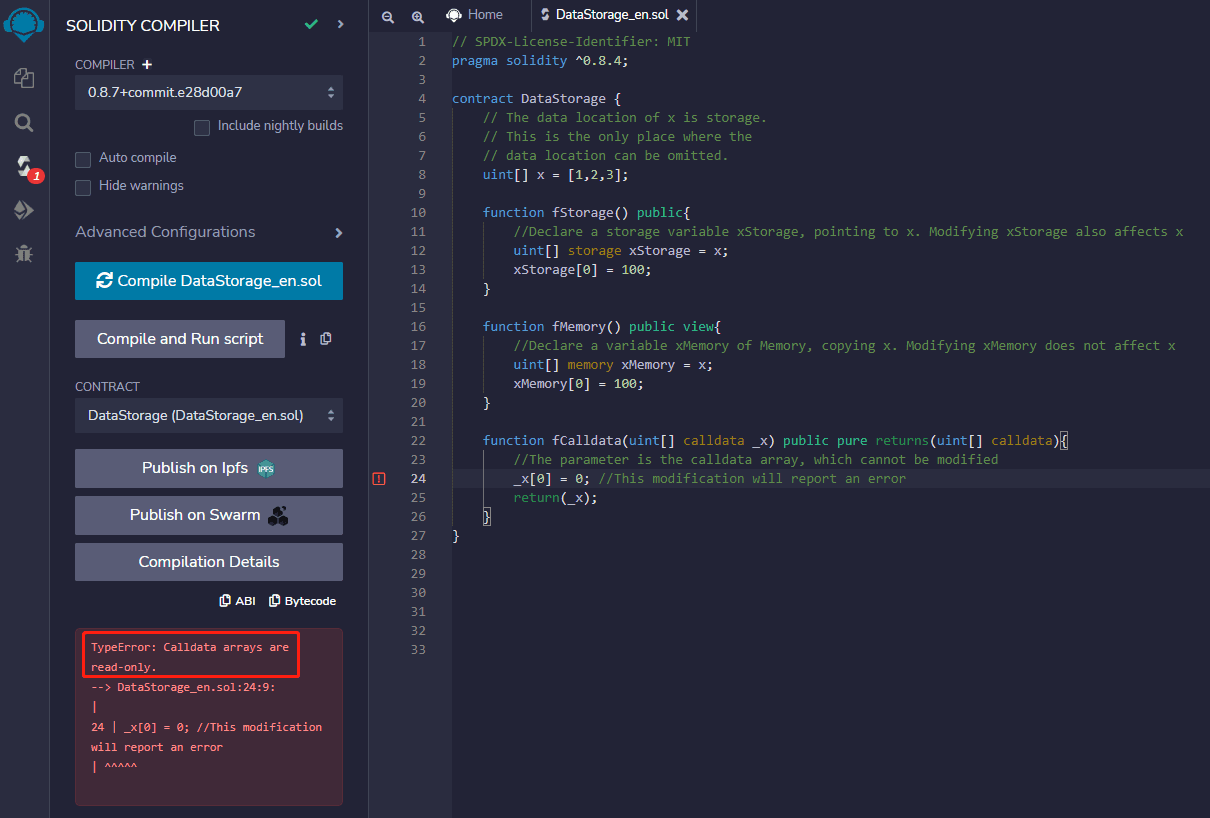

calldata
: Similar tomemory
, stored in memory, not on-chain. The difference frommemory
is thatcalldata
variables cannot be modified, and are generally used for function parameters. Example:
Example:

Data location and assignment behaviour
Data locations are not only relevant for the persistence of data but also for the semantics of assignments:

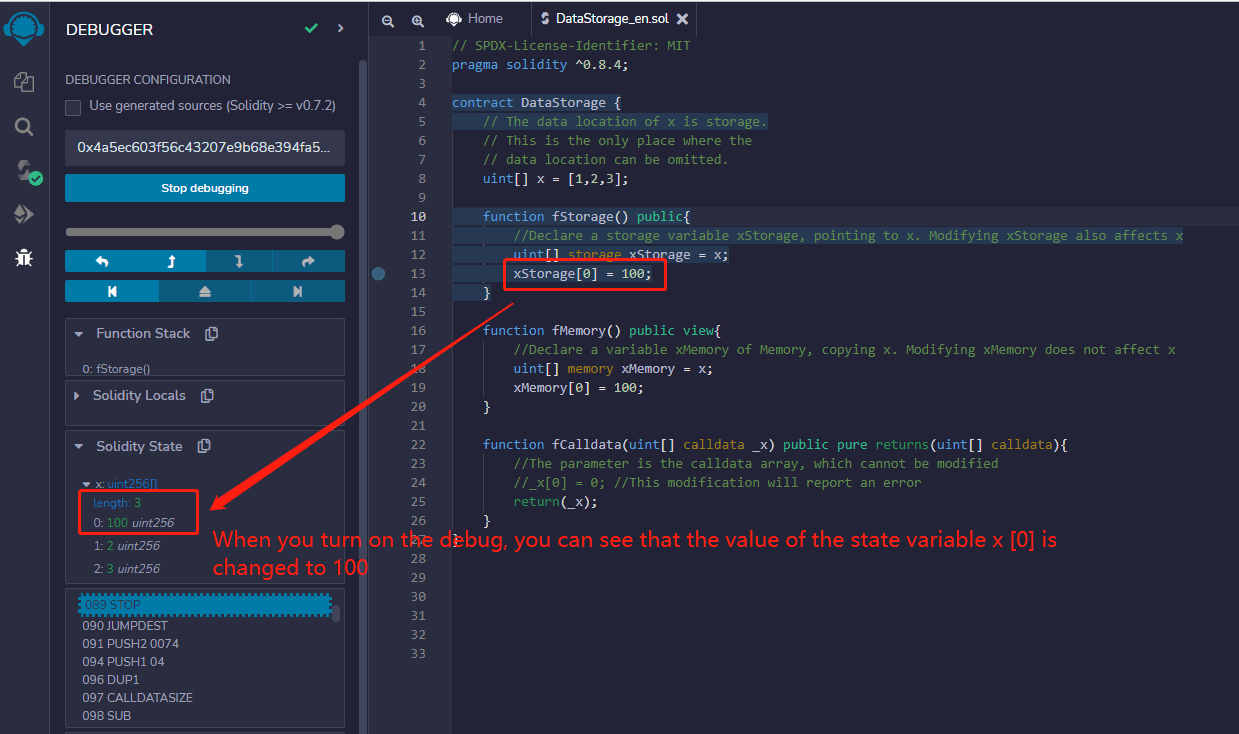

- When
storage
(a state variable of the contract) is assigned to the localstorage
(in a function), a reference will be created, and the changing value of the new variable will affect the original one. Example:
Example:

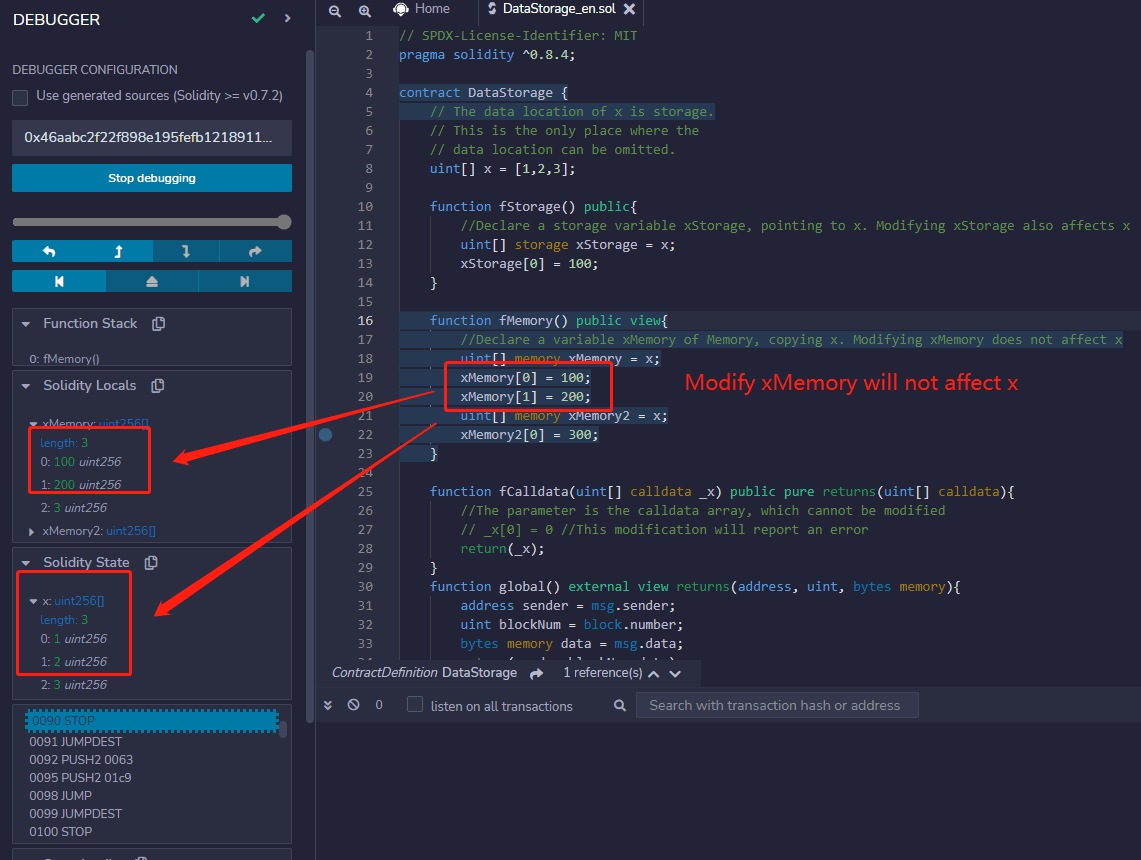

- Assigning
storage
tomemory
creates independent copies, and changes to one will not affect the other; and vice versa. Example:
Example:

-
Assigning
memory
tomemory
will create a reference, and changing the new variable will affect the original variable. -
Otherwise, assigning a variable to
storage
will create independent copies, and modifying one will not affect the other.
Variable scope
There are three types of variables in Solidity
according to their scope: state variables, local variables, and global variables.
1. State variables
State variables are variables whose data is stored on-chain and can be accessed by in-contract functions, but their gas
consumption is high.
State variables are declared inside the contract and outside the functions:
We can change the value of the state variable in a function:
2. Local variable
Local variables are variables that are only valid during function execution; they are invalid after function exit. The data of local variables are stored in memory, not on-chain, and their gas
consumption is low.
Local variables are declared inside a function:
3. Global variable
Global variables are variables that work in the global scope and are reserved keywords for solidity
. They can be used directly in functions without declaring them:

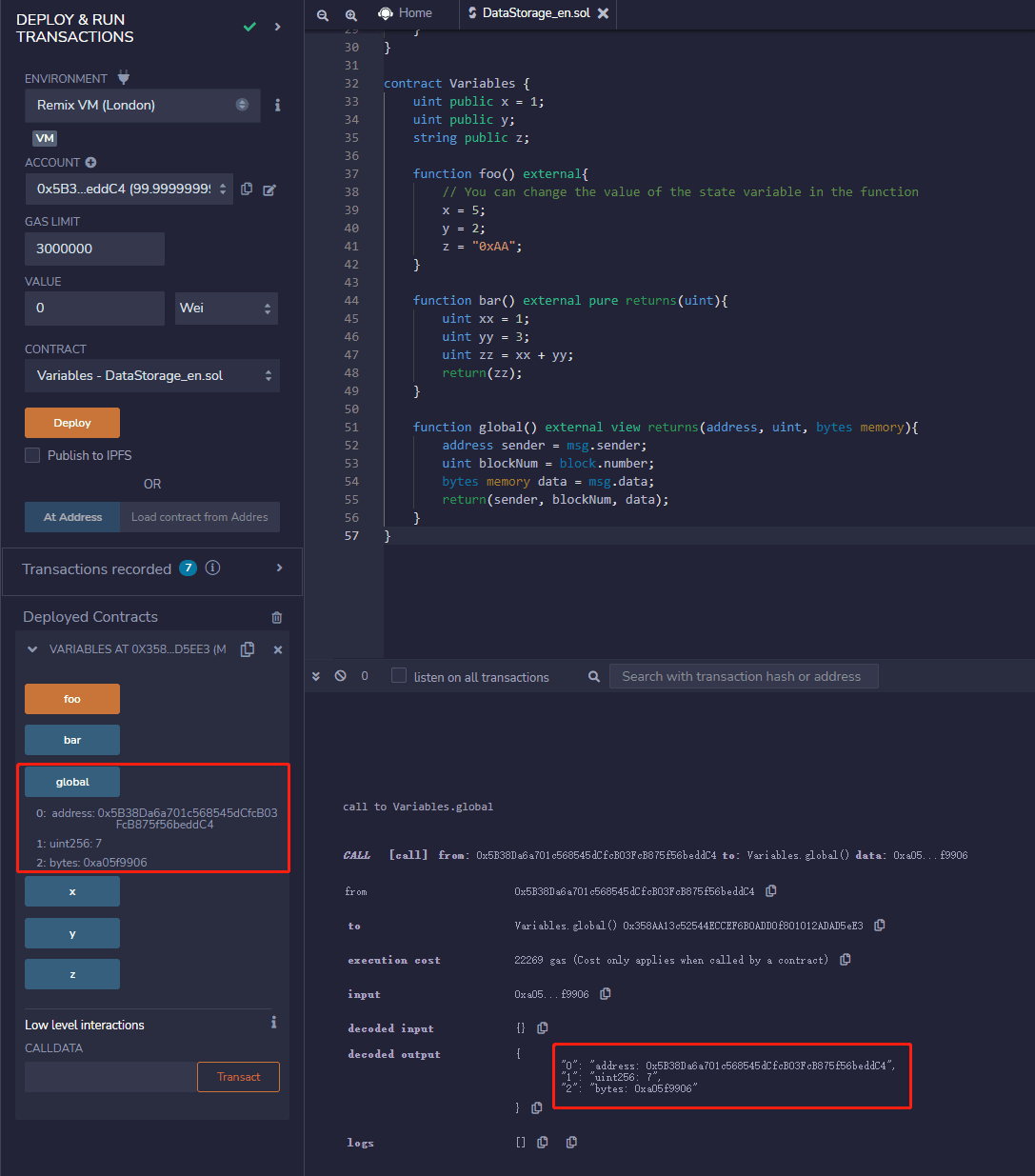

In the above example, we use three global variables: msg.sender
, block.number
and msg.data
, which represent the sender of the message (current call), current block height, and complete calldata.
Below are some commonly used global variables:
blockhash(uint blockNumber)
: (bytes32
) The hash of the given block - only applies to the 256 most recent block.block.coinbase
: (address payable
) The address of the current block minerblock.gaslimit
: (uint
) The gaslimit of the current blockblock.number
: (uint
) Current block numberblock.timestamp
: (uint
) The timestamp of the current block, in seconds since the unix epochgasleft()
: (uint256
) Remaining gasmsg.data
: (bytes calldata
) Complete calldatamsg.sender
: (address payable
) Message sender (current caller)msg.sig
: (bytes4
) first four bytes of the calldata (i.e. function identifier)msg.value
: (bytes4
) number of wei sent with the message
Example:

Summary
In this chapter, we introduced reference types, data storage locations and variable scopes in solidity
. There are three types of data storage locations: storage
, memory
and calldata
. Gas costs are different for different storage locations. The variable scope includes state variables, local variables and global variables.
