Solidity 101

In this section, we will introduce the abstract and interface contracts in Solidity, using the interface of ERC721 as an example. They are used to write contract templates and reduce code redundancy.

Abstract contract

If a contract contains at least one unimplemented function (no contents in the function body {}), it must be labelled as abstract; Otherwise it will not compile. Moreover, the unimplemented function needs to be labelled as virtual. Take our previous Insertion Sort Contract as an example, if we haven't figured out how to implement the insertion sort function, we can mark the contract as abstract, and let others overwrite it in the future.

abstract contract InsertionSort{
    function insertionSort(uint[] memory a) public pure virtual returns(uint[] memory);
}

Interface

The interface contract is similar to the abstract contract, but it requires no functions to be implemented. Rules of the interface:

1. Cannot contain state variables.
2. Cannot contain constructors.
3. Cannot inherit non-interface contracts.
4. All functions must be external and cannot have contents in the function body.
5. The contract that inherits the interface contract must implement all the functions defined in it.

Although the interface does not implement any functionality, it is the skeleton of smart contracts. The interface defines what the contract does and how to interact with it: if a smart contract implements an interface (like ERC20 or ERC721), other Dapps and smart contracts will know how to interact with it. Because it provides two important pieces of information:

1. The bytes4 selector for each function in the contract, and the function signatures function name (parameter type).
2. Interface id (see EIP165 for more information)

In addition, the interface is equivalent to the contract ABI (Application Binary Interface), and they can be converted to each other: compiling the interface contract will give you the contract ABI, and abi-to-sol tool will convert the ABI back to the interface contract.

We take the IERC721 contract, the interface for the ERC721 token standard, as an example. It consists of 3 events and 9 functions, which all ERC721 contracts need to implement. In the interface, each function ends with ; instead of the function body { }. Moreover, every function in the interface contract is by default virtual, so you do not need to label the function as virtual explicitly.

interface IERC721 is IERC165 {
    event Transfer(address indexed from, address indexed to, uint256 indexed tokenId);
    event Approval(address indexed owner, address indexed approved, uint256 indexed tokenId);
    event ApprovalForAll(address indexed owner, address indexed operator, bool approved);

    function balanceOf(address owner) external view returns (uint256 balance);

    function ownerOf(uint256 tokenId) external view returns (address owner);

    function safeTransferFrom(address from, address to, uint256 tokenId) external;

    function transferFrom(address from, address to, uint256 tokenId) external;

    function approve(address to, uint256 tokenId) external;

    function getApproved(uint256 tokenId) external view returns (address operator);

    function setApprovalForAll(address operator, bool _approved) external;

    function isApprovedForAll(address owner, address operator) external view returns (bool);

    function safeTransferFrom( address from, address to, uint256 tokenId, bytes calldata data) external;
}

IERC721 Event

IERC721 contains 3 events.

• Transfer event: emitted during transfer, records the sending address from, the receiving address to, and tokenId.
• Approval event: emitted during approval, records the token owner address owner, the approved address approved, and tokenId.
• ApprovalForAll event: emitted during batch approval, records the owner address owner of batch approval, the approved address operator, and whether the approve is enabled or disabled approved.

IERC721 Function

IERC721 contains 3 events.

• balanceOf: Count all NFTs held by an owner.
• ownerOf: Find the owner of an NFT (tokenId).
• transferFrom: Transfer ownership of an NFT with tokenId from from to to.
• safeTransferFrom: Transfer ownership of an NFT with tokenId from from to to. Extra check: if the receiver is a contract address, it will be required to implement the ERC721Receiver interface.
• approve: Enable or disable another address to manage your NFT.
• getApproved: Get the approved address for a single NFT.
• setApprovalForAll: Enable or disable approval for a third party to manage all your NFTs in this contract.
• isApprovedForAll: Query if an address is an authorized operator for another address.
• safeTransferFrom: Overloaded function for safe transfer, containing data in its parameters.

When to use an interface?

If we know that a contract implements the IERC721 interface, we can interact with it without knowing its detailed implementation.

The Bored Ape Yacht Club BAYC is an ERC721 NFT, which implements all functions in the IERC721 interface. We can interact with the BAYC contract with the IERC721 interface and its contract address, without knowing its source code. For example, we can use balanceOf() to query the BAYC balance of an address or use safeTransferFrom() to transfer a BAYC NFT.

contract interactBAYC {
    // Use BAYC address to create interface contract variables (ETH Mainnet)
    IERC721 BAYC = IERC721(0xBC4CA0EdA7647A8aB7C2061c2E118A18a936f13D);

    // Call BAYC's balanceOf() to query the open interest through the interface
    function balanceOfBAYC(address owner) external view returns (uint256 balance){
        return BAYC.balanceOf(owner);
    }

    // Safe transfer by calling BAYC's safeTransferFrom() through the interface
    function safeTransferFromBAYC(address from, address to, uint256 tokenId) external{
        BAYC.safeTransferFrom(from, to, tokenId);
    }
}

Remix demo

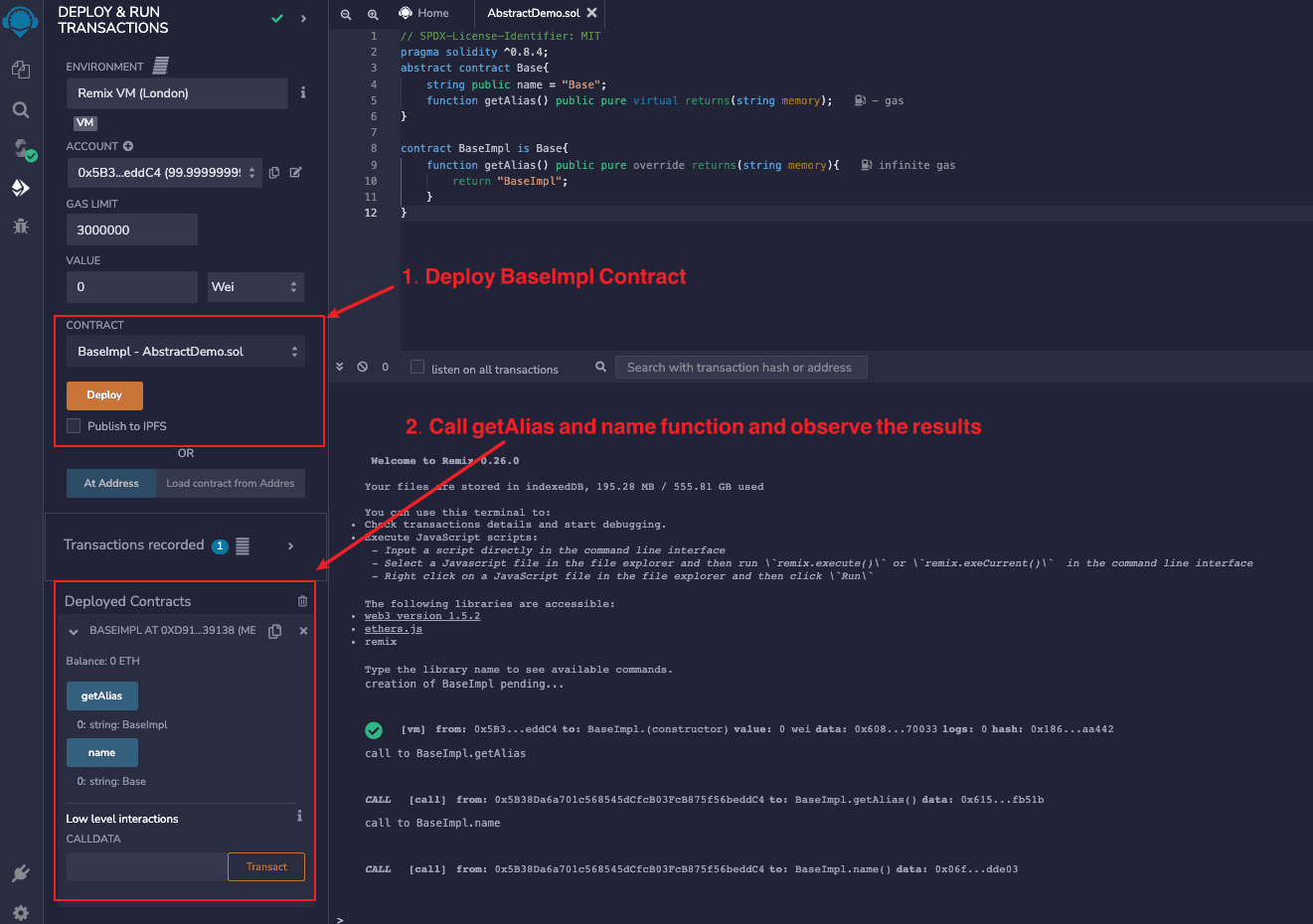

1. Abstract example:

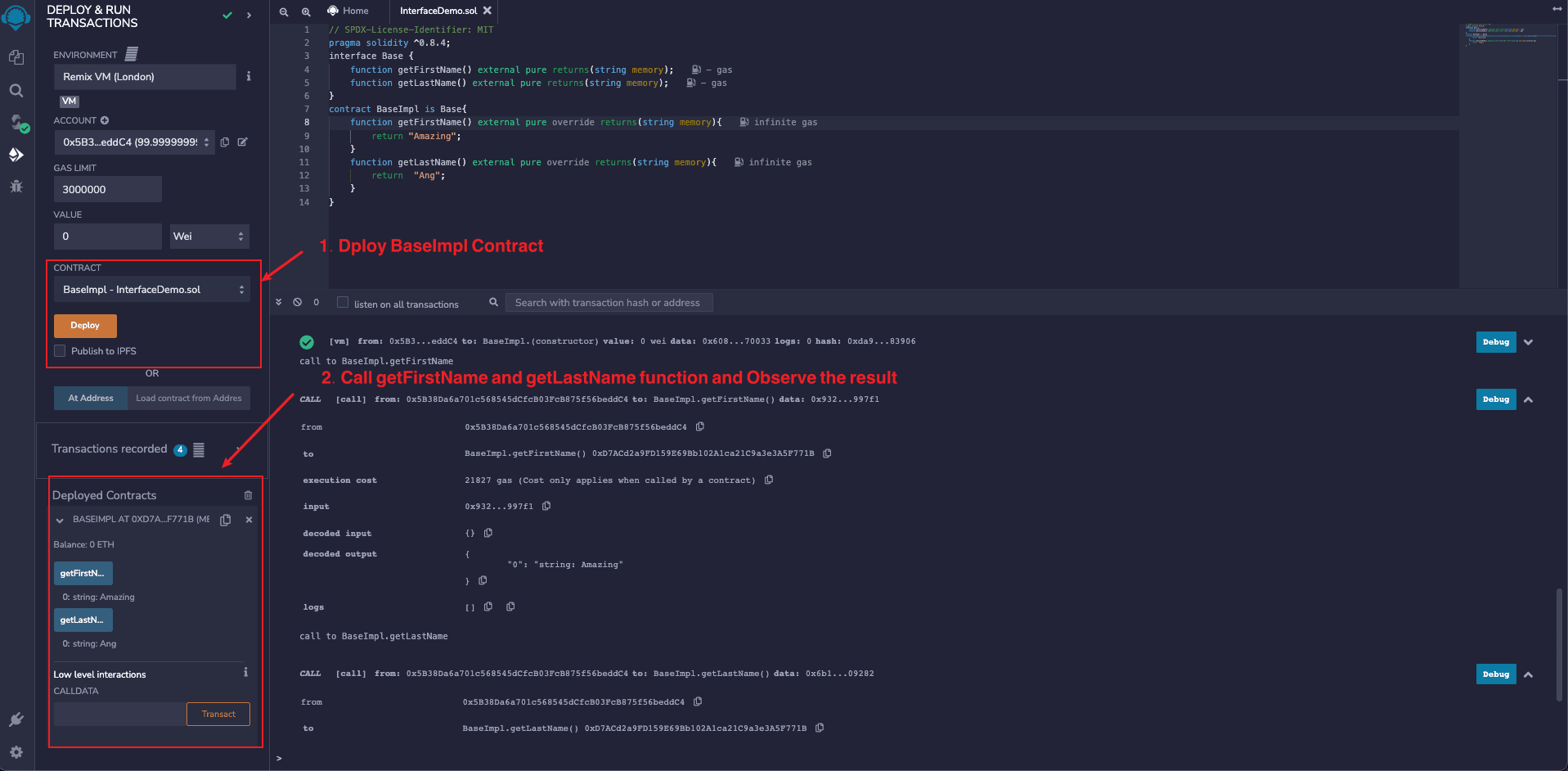

2. Interface example:


Summary

In this chapter, we introduced the abstract and interface contracts in Solidity, which are used to write contract templates and reduce code redundancy. We also learned the interface of the ERC721 token standard and how to interact with the BAYC contract using the interface.
